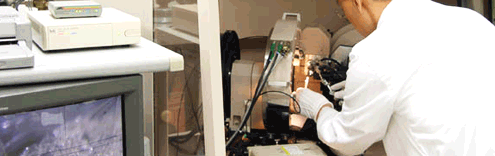

The material analysis of a gilt bronze artifact is achieved by using a video analysis terminal to observe its plating layers and internal structure, then an x-ray fluorescence spectrometer to analyze the components of each section. The following are the results of the detailed shooting and component analysis of the sarira case artifact found at the East Three-story Stone Pagoda at Gameunsa Temple Site, Gyeongju(National Treasure).

Magnification of the Fine Details of the Sarira Case Lid

Decorated with 0.25mm wide gold threads and 0.3∼0.5mm gold grains welded on the surface (about 1.3cm long).

Magnification of the Fine Details of the Sarira Case Lid

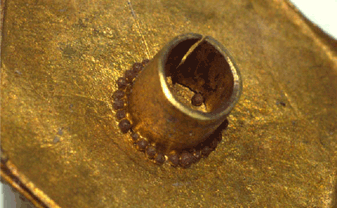

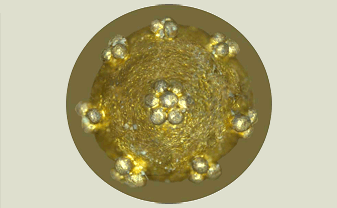

Ornamented with three gold grains welded in seven places around seven gold grains in the center. (About 0.4cm long)

Standardization of Techniques for Gold Grain Utilization

Gold grains with a diameter of 0.3mm are used with a reference point focused on a central point.

Collection Conditions for Pungtak Bells

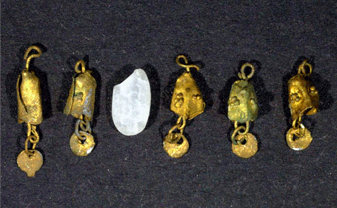

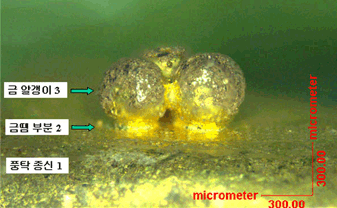

Collection Conditions for Pungtak Bells about the size of a grain of rice. Bell’s 5mm-long body ornamented with gold grains with diameter of 0.3mm.

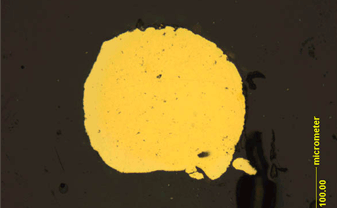

The condition of the internal structure of the gold grains

Gold of 98% purity used.

Gold grains with a diameter of 0.3mm were firmly welded using gold fusing (and also combined fusing with 10% silver content). The melting point of pure gold is 1063℃, that of pungtak bells (94% gold) is 1055℃, and that of gold fused with 10% silver is 1046℃. We can tell from this that the gold was fused using melting ranges that varied depending on the proportion of silver in each part. Thanks to this discovery we know that the Silla artisans possessed amazing metallurgical skills.

It is a fine example of a fusion technique with the amazing capacity to minimize the area affected by the fusing. → Commissure with a length of 0.18mm

The diagram below shows the three types of bronzeware component distribution. In the bronze cutlery and bronze containers 1, there was no addition of lead, and the artifacts were identified as high quality brass tablewares that were worked at 550℃ and then water-cooled. These were generally used as food containers. The bronze containers 2 and the bronze swords contained a fair amount of lead to increase castability and make them easier to produce. The bronze containers in this group were not intended for cooking or eating, and we understand that the bronze swords were made with small amounts of tin and lead to ensure appropriate levels of hardness and strength.

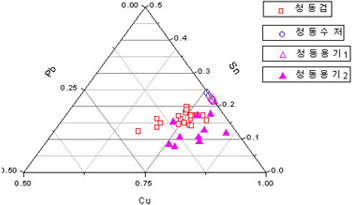

Graph of the average composition of bronzewares

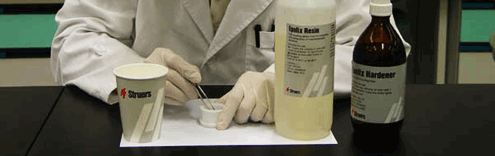

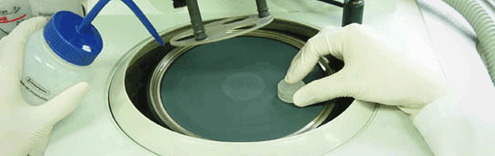

By analyzing the components and structure of bronze artifacts, it is possible to confirm whether the production method consisted of forging or casting. In the case of cast items, branch-like dendritic structure is visible, while grains are visible in forged items that have been pre-hardened. Even in the case of cast items, if they are heated over time the dendritic structure disappears and changes into crystal grain forms. Lead also does not mix with copper or tin, and generally collects and separates as round particles between the branches (Segregation). If the lead content is above 10%, the appearance of a eutectoid structure (α+δ) can be identified.

Bronze spoons

Micro-structures of bronze spoons (forging, 201×)

Bonze container

Micro-structures

(forged items, 201×)

Bronze daggers

Micro-structures of bronze daggers

(casting, 201×)

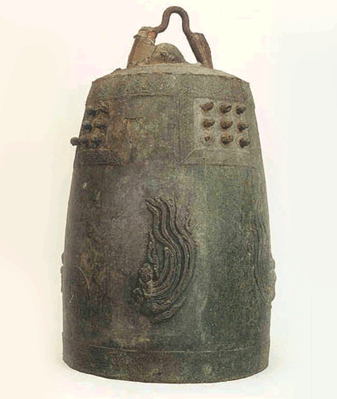

This Goryeo-period temple bell was donated by a Japanese private collector named Himiko Takahara to the Korean government, in November 1999. Standing 71cm tall and 50cm in diameter of its low section, the temple bell falls into the mid-size category.

Goryeo Temple Bell

The quality of iron is determined by the amount of carbon (C) found in the iron itself. Pure iron that contains no carbon melts at 1538℃. There are four kinds of solid states found in a Fe-Fe3C phase diagram. These are alpha ferrite (α), austenite, cementite, and delta ferrite. In the case of iron with 1% carbon content, if you cool the iron down from the liquid state of L, at 1430℃ crystal grains of austenite (γ) will appear and it will become γ at 1360℃. If the temperature is lowered to 810℃, the extraction known as cementite (Fe3C) will appear and slowly begin to increase. If the iron is cooled further still to 727℃, γ disappears and the ferrite (α) becomes entirely cementite. However, if the carbon content is 0.8%, pearlite will appear and cementite extracted from a pearlite base. Pearlite is an extraction that is alternatively layered with ferrite (α) and cementite (Fe3C). If the carbon content is 4.3%, the grains will not form and it will momentarily coagulate at 1130℃. Therefore this form of iron is often used as an alloy.

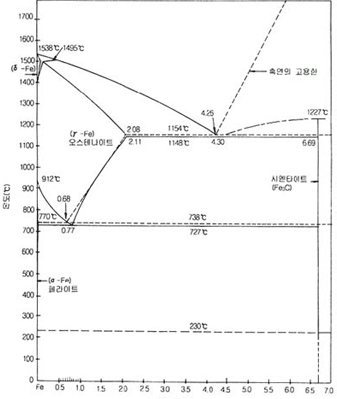

Fe-C condition graph Broken Line: Fe-Fe3C condition graph, Dotted Line:FeㆍㆍㆍC condition graph

As the carbon content increases, iron becomes stronger and more difficult to forge. As such, iron types are generally classified according to the carbon content.

• 1. Wrought iron : Also known as pure iron, this refers to iron with a carbon content of less than 0.1%. It is very soft and can be bent by hand. It can be forged to make items such as plates, but is not strong enough for convenience tools such as axes and knives.
• 2. Steel : This refers to iron with a carbon content of 0.1~1.7%. It is hard but malleable, and can be forged into a variety of objects, so it is the most widely used form of iron. It has been heavily utilized in Korea since the beginning of the Iron Age.
• 3. Cast Iron : Also known as pig iron, this contains carbon levels of 1.7~4.5%. It is too hard to be forged and is only used for casting. In Iron Age Korea, this was used to make implements like axes.

Iron pieces

The Refined Structure of Iron pieces(200x)

Iron Chisel

The Refined Structure of Iron chisels(200x)

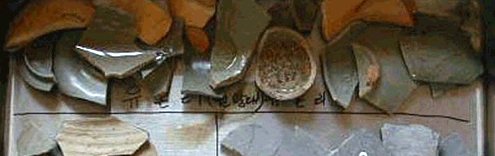

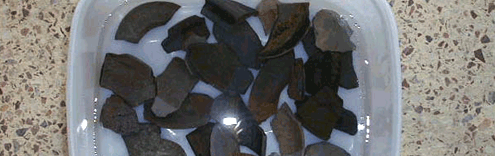

Earthenware refers to containers made by firing clay. Earthenwares differ greatly in terms of quality and size depending on the quality of the clay used and the production method, and their ornamentation. Earthenware also reflects lifestyle and culture and, as it does not corrode at any sedimentary level, well-preserved ancient artifacts have served as fundamental materials for archae-ological research. However, in standard research on earthenware, external factors such as design and malformities have played the main role in the classification and recording of forms. Recently though, more attention has been paid to the information hidden inside earthenware, which is accessible through scientific methods. There are two main goals of the scientific analysis of earthen-ware, one being to determine the production methods and techniques used, and the other being to identify the region of origin. Earthenware production techniques are investigated by analyzing mineral composition, chemical composition and plastic temperature, as well as by matter analysis accom-panied by a structural examination. Estimations of the area of production are made by analyzing microelements based on evidence of the geological characteristics of the region in which the earthenware and pottery used as raw materials were found. Through these estimations of the area of production, we can not only gain a better understanding of ancient trade and exchange relationships, but also of the political, economic and cultural relationships between the area of production and the area of utilization, and through this improve our understanding of such issues as modes of production and class issues in the society of the period.

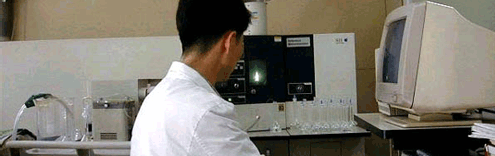

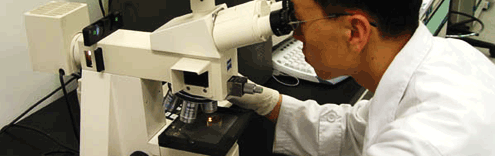

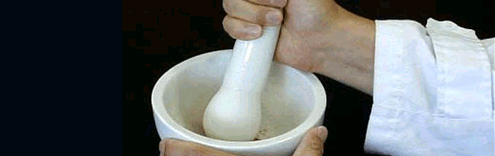

Within the clay that makes up the base material for earthenware, elements such as Si, Fe, Al, Mg, Ca, Na, etc. can be found. The type and ratio of these elements have an effect on determining the quality of the clay. Therefore, in the study of the type and the structure, as well as the interactions, of these minerals and their auxiliary minerals within the clay, a number of natural scientific methods of analysis are used. Scientific methods of analyzing earthenware can be divided into mineral analysis, chemical analysis, and thermal analysis. In mineral analysis, devices such as polarizing microscopes and scanning electron microscopes are the most widely used, while in chemical analysis there is widespread use of X-ray diffraction analysis, atomic absorption analysis, X-ray fluorescence analysis, neutron activation analysis, inductively-coupled plasma atomic emission spectroscopy, and so on. In themal analysis, analysis methods such as differential thermal analysis, thermo gravimetric analysis and heat expansion analysis are used to measure the plastic temperature of earthenware.

Earthenware is produced from clay, and clay is acquired from a clay stratum, an area within a geological space. Clay is a product of geological and geochemical processes caused by through the weathering of rock. Even though rocks are weathered into clay, within the clay thus produced there remain the chemical characteristics of the original rock. Clay reflects the chemical composition of the rocks that make up the base of any given region. Therefore, the differences in the chemical compo-sition of the base of earthenware reflect regional differences. However, the main components that make up clay are elements like Si, Al, Fe, Ca, K, Na, and Mg. If you analyze and compare the main components from each clay production area, the content distribution ranges often clash, making this an inappropriate method of differentiating clay by region. Therefore, for estimations of earthenware production areas, the analysis of microelements is more effective than that of primary components.

However, in the differentiation of production region by microelement content, there is as yet no experimental standard by which to judge which elements hold accurate. Therefore, we need to analyze microelements quantitatively and divide these by production region. As artifacts like earthenware represent particularly uneven material, and additives affect the concentration of the microelements, this type of analysis of the majority of the elements is a way of overcoming this kind of bias. When looking for the average, standard deviation and coefficient of variation (standard deviation/average x100) for these multiple components in order to determine a component that works as a means of differentiating regions, the components requiring identification are those with a large degree of average difference and a small degree of standard deviation difference.

The results of statistical analyses of production regions of earthenware found at five regions in Gyeongsangnam-do where kiln sites are located show that the earthenware can be divided into roughly four groups. This indicates that the kiln sites have no geological interrelationship.

Statistical Analysis Results of Gyeongsangnam-do Earthenware Kiln Sites

In Korea, the most ancient pigment dates back to the tomb paintings of Goguryeo Kingdom. Most of the ancient pigments on such wall paintings are made of inorganic minerals. Since it's very difficult and costly to buy mineral pigments nowadays, cheaper and easy-to-get synthetic pigments are usually used as a substitute paint.

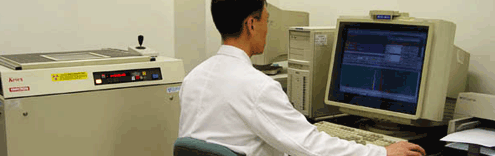

The analysis of an ancient pigment begins with a qualitative analysis to break down a pigment sample by color, using an X-ray fluorescence spectrometer. Minerals of different colors are, then, analyzed using a micro-area X-ray diffractometer. The following are the results of the analysis of pigments found in the red clay in the placenta room of King Yeongjo's daughter at West Three Royal Tombs, Goyang.

Clay in the placenta room of Yeongjo's daughter at West Three Royal Tombs, Goyang

Results of qualitative analysis of the red pigment using a micro-area X-ray fluorescence spectrometer → Main components: Ca, Pb, Hg

Results of qualitative analysis of the red pigment using a micro-area X-ray fluorescence spectrometer → Main components: Ca, Pb, Hg Results of mineral analysis of the red pigment using a micro-area X-ray diffractometer → HgS (cinnabar), CaCO3 (calcite), PbO (lead monoxide)

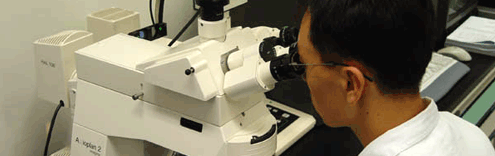

Using an image analyzer on cross-sectional images of a mural can reveal secrets of its creation.

Cross-section photo of the wall behind the mural of Geungnakjeon Hall of Bongjeongsa Temple, Andong (objective lens with 5× zoom ratio)→ Paint layer, ground layer (yellow clay and white clay layers), support

Magnified cross-section photo of the wall behind the mural of Geungnakjeon Hall of Bongjeongsa Temple, Andong (objective lens with 10× zoom ratio)→ Paint layer (94~150㎛), ground layer (yellow clay layer: 32~77㎛, white clay layer: 160~211㎛)

As a result of the combined processes of soil formation factors such as local climate, flora and fauna, parent rock composition and structure, geography and time, soil is a historical and independent natural body created on the earth’s surface.

Much more than just spaces containing ancient artifacts and relics, historical sites reveal their process of development and original environment. Therefore, to further our understanding of historical sites, it is necessary to investigate a wide variety of materials related to the environment of the period, including archaeological materials. These must then be analyzed in various ways (Clay mineral analysis, grading analysis, hydrogen ion exponent analysis, organic analysis, etc) in order to extract as much data from them as possible.

• 1.Material that restores the period environment
• 2.Material related to human life economy
• 3.Material recorded with relative chronology
• 4.Material related to human behavior patterns and technological development (The acquisition, processing and use of foodstuffs) as well as nutrition and diet.

Analysis of the parasite eggs and pollen of the low, moist historical sites at Sinchang-dong 金原正子 金原正明(1997). National Gwangju Museum, Low, Moist Historic Site Sinchang-dong Gwangju 1

• 1. Explanation of the Character of Historical Traces through Analysis of Fatty Acid in Soil
  • 中野益男. 1984. [殘存脂肪分析の現狀], [歷史公論] 第10卷 第6號
• 2. The use of the distribution ratio of microelements between obsidian and earthenware pottery solves the issue of the trade relationship between places of origin, manufacture and consumption.
  • 中野益男. 1985. [特集. 黑曜石硏究の現狀].[考古學ジヤ-ナル] No. 244.
  • Jingtusi Temple: Hall of Sakyamuni
• 3. Detection of parasites such as roundworms in soil sediments dating from the 8th century. Excavation of a number of wooden artifacts identified as chugi sticks used in toilet facilities. Preparation of an archaeological opportunity for toilet facilities.
  • 金原正子 金原正明(1995).日本文化財科學會 第12回大會硏究 發表要旨集

Data Type

Data Type

Data Type

• Research on Understanding of Historical Toilet Sites and Dietary Practice through the analysis of 5β-stanols.

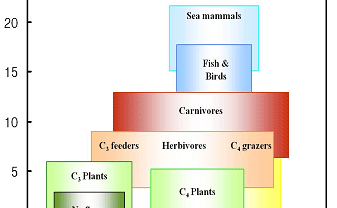

• Investigation into ancient dietary patterns through the analysis of carbon stable isotopes.
• Investigation into the use of historical sites through the analysis of nitrogen stable isotopes and research into the agricultural history of ancient peoples.
• Research into lifestyle history following an investigation of types of fecal pollution through the analysis of bile acids.
• Research on ancient life activity patterns through organic molecules (Proteins, lipids, food remains).

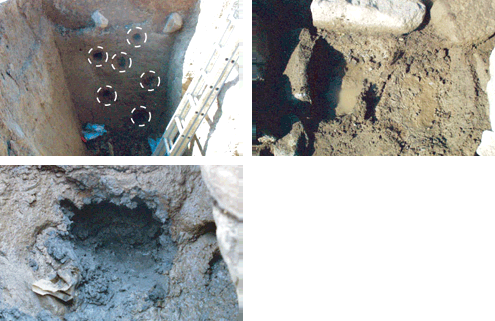

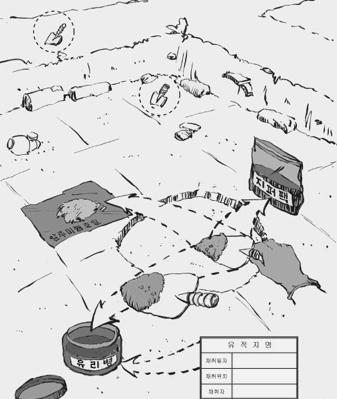

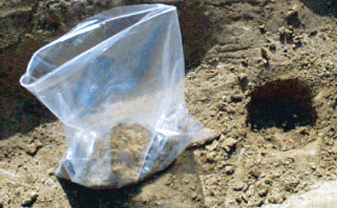

• 1.Soil samples must be collected without damaging nearby artifacts (if possible, request the presence of an archaeological excavation specialist)
• 2.wear a pair of gloves (preferably in latex) to reduce the chance of sample contamination.
• 3.use a garden trowel and a chisel (tools must be cleansed before their next use).
• 4.samples must be collected from at least five different areas (according to the depth, width, color and surface of the artifact).
• 5.Remove a surface layer of about 5cm depth before taking the sample, to minimize errors caused by contaminated samples.
• 6.make sure that control soil samples are also collected from surrounding areas (control samples must also be taken from at least five different areas).
• 7.use aluminum foil or glass jars as the receptacles (plastic bags may be used at the collection site, to temporarily hold the samples).
• 8.All receptacles must be labeled with basic information, including the site of sample collection, its general location, date and the name of the collector.
• 9.Soil samples must be stored at a cool temperature, away from light (In a shaded storage area or at 4℃ in a refrigerator)

Contrast soil from the vicinity to be collected from five clearly specified locations

Excavation Site, Excavation Date, Person in Charge, Altitude above Sea Level (Distance from Ocean), Use of Soil (present condition of farmlands, fields, etc), Climate, Differentiation of Soil Class and Stratum (viscosity, color, particle thickness), Thickness of Soil Stratum (excavation site soil stratum base line data), dry condition (dryness, moisture), Presence and Type of Rocks (general rock types such as granite, marble and sandstone), Presence and Type of Grains, Presence and Type of Bone Splinters (expressed as far as possible as fish bones, human bones, etc), Presence and Type of Plant Bodies (expressed as far as possible as rice straw, etc)

• - Study on characteristics such as the amounts of inorganic and organic materials
• - Investigation of the Dietary Practices and Living Culture of Ancient Human Residents of the Site

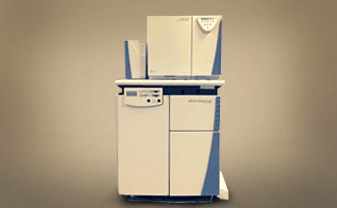

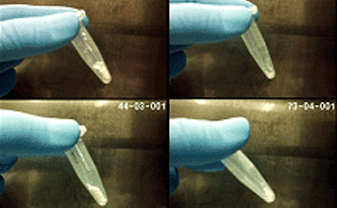

• - Analysis of the Quantity and Quality of Soil Components through Fatty-Acid Analysis (TLC, GC/MS)
• - Remains of ancient toilets, Investigation of vaious uses of artifacts such as livestock husbandry

• - Molecular biological and morphological research on microorganisms and parasites
• - Investigation into the disease profile of ancient human residents of the site by analyzing the state of soil pollution

• - Morphological Research on Pollen, Leaves, Roots, etc
• - Investigation into the Characteristics of the Ancient Vegetation and Environment of the Historical Site

• - Genetic and Molecular Biological Research on the Fossils Extant within the Soil
• - Species Groupings of Fossils through Genetic Analysis and Morphological Differentiation
• - Creation of a Fossil Database for the Korean Peninsula through Genetic Comparison with Modern Species
